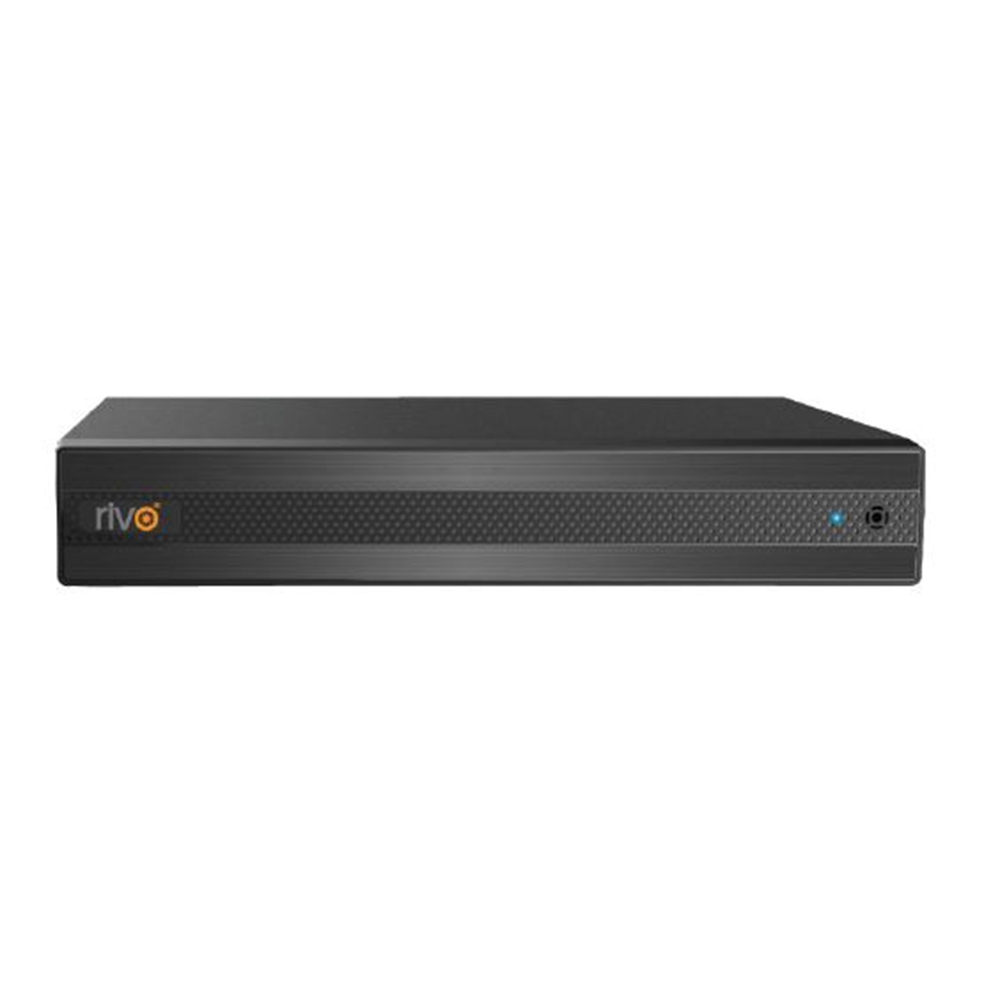

4 kanal 1 HDD IP Kamera Kayıt Cihazı (NVR)

* .

RV-2604N serisi 4/8 CH 6MP/5MP/4MP/3MP/1080P/ destekler Her kanalda yüksek tanımlı kayıt sağlamak ve sistemin olağanüstü sağlamlığını gerçekleştirmek için en gelişmiş SOC tekniğini benimseyen 960P/720P yüksek tanımlı IP video girişi. RV-2604N serisi, 4/8 CH IP girişini, aynı anda 4/8 CH oynatmayı, ve 1080P yüksek çözünürlüklü ekran. Ürün serisi, ev, finans, ticaret, işletme gibi farklı güvenlik gereksinimlerini karşılayabilir. ulaşım ve hükümet vb.

Model		RV-2604N	RV-2608N
System	OS	Embedded Linux
Video	Network Input	4 CH IPC input	8CH IPC input
	Network Input Resolution	6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
	Output	HDMI × 1 : 1920 × 1080 / 1280 × 1024/ 1024 × 768 VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768 HDMI and VGA output the same video source
	Compression	H.265S / H.265+ /H.265 /H.264
Audio	Network Input	4 CH IPC audio input	8 CH IPC audio input
	2-way Audio	No
	Local Output	No (HDMI supports the audio output)
	Compression	G.711(U/A)
Record	Record Stream	Dual stream recording
	Resolution	6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
	Frame Rate	6MP@20fps(NTSC/PAL); 5MP or lower@30fps/25fps(NTSC/PAL)
Playback	Simultaneous Playback	Max. 4 CH	Max. 8 CH
	Search	Time slice / time / event / tag /smart search
	Smart Search	Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
	Function	Play, pause, FF, FB, digital zoom, etc.
Decoding Capability	Live View/ Playback	1CH 6MP; 4CH 720P
Alarm	Mode	Manual, sensor, motion, exception, smart events
	Input	Support IPC alarm input
	Output	Support IPC alarm output
	Triggering	Record, snapshot, buzzer, preset, e-mail, etc.
Network	Interface	RJ 45 100Mbps × 1
	Protocol	TCP / IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTSP, SNMP, ONVIF, etc.
	Incoming Bandwidth	32 Mbps	56 Mbps
	Outgoing Bandwidth	32 Mbps	56 Mbps
	Client Connection	Max. 10 users access
LPR	Plate Recognition	Yes
Mobile Device	OS	iOS, Andriod
Storage	HDD Interface	SATA2.0 × 1, max 8T
Backup	Local Backup	U disk, USB mobile HDD
	Network Backup	Yes
Port	USB	USB 2.0 × 2
	Remote Controller	Optional
Others	Power Supply	DC 12V/1.5A
	Consumption	< 6W ( without HDD )
	Dimensions (mm)	255 × 222 × 42 ( W × D × H )
	Working Environment	-10 ～ 50 ℃，10% ～ 90% humidity
	Certificate	CE, FCC
	Environmental Protection	Complies with Directive EU RoHS, REACH and WEEE
